Small Mining 100-150 Tph Pe 600 X 900 Jaw Crusher Machine
| Name | Small Mining 100-150 Tph Pe 600 X 900 Jaw Crusher Machine |
| Attributes | Jaw Crusher Machine |
| Processing capacity | 100-150 Tph |
Technical Specifications and Performance
| Basic parameters | Inlet port width mm | Inlet port length mm | Maximum feeding size mm | Discharge port adjustment range mm | Production capacity t/h | Motor Power kw | Machine Weight t | Dimensions mm |
| PE250x400 | 250 | 400 | 210 | 20-60 | 4-14 | 15 | 3 | 1450X1350X1400 |
| PE250X500 | 250 | 500 | 210 | 20-60 | 5-16 | 18.5 | 4.1 | 1320x1400x1320 |
| PE400X600 | 400 | 600 | 340 | 35-85 | 8-25 | 30 | 6.95 | 1700x1800x1650 |
| PE500X750 | 500 | 750 | 425 | 50-100 | 30-70 | 55 | 10.5 | 2118x1962x1843 |
| PE600X900 | 600 | 900 | 500 | 75-125 | 40-100 | 75 | 20 | 2600x2180x2325 |
| PE750X1060 | 750 | 1060 | 630 | 80-140 | 80-180 | 95 | 25.5 | 2550x2322x3110 |
| PE900X1200 | 900 | 1200 | 750 | 95-165 | 200-290 | 110 | 49.5 | 3110x3026x3280 |
| PE1200x1500 | 1200 | 1500 | 950 | 160-280 | 300-500 | 200 | 88 | 4590x3272x4033 |
| PEX150X750 | 150 | 750 | 120 | 15-45 | 5-14 | 15 | 3 | 1194x1531x1089 |
| PEX250X750 | 250 | 750 | 210 | 25-60 | 8-15 | 30 | 4.98 | 1520x1750x1270 |
| PEX250X1000 | 250 | 1000 | 210 | 25-60 | 10-25 | 30 | 6.34 | 1530x1992x1380 |
| PEX250X1200 | 250 | 1200 | 210 | 20-60 | 30-52 | 45 | 9.5 | 2300x2120x1500 |
FAQ
Q1: What details should customers send to us before we send the equipment configuration and quotation?
A: 1) The raw materials to be crushed? limestone, granite, quartz, marble, concrete, basalt, etc.
2) The expected handling capacity? ton per hour or ton per day
3) The expected finished product size? (mm)
Q2. How is the quality of your products?
A: The mining equipment are strictly manufactured according to the international standard. The quality inspection and test run will be made before delivery of the products.
Q3: Do you provide after-sales service?
A: Yes. We will assign professional technical engineers for the installation, commissioning, operation training, etc
Q4: Can the products be delivered to the Qingdao port, Shanghai Port, Urumqi, Guangzhou, Dali, etc?
A: Sure, the products can be delivered to the destination as required.
Product Tags:
|
|

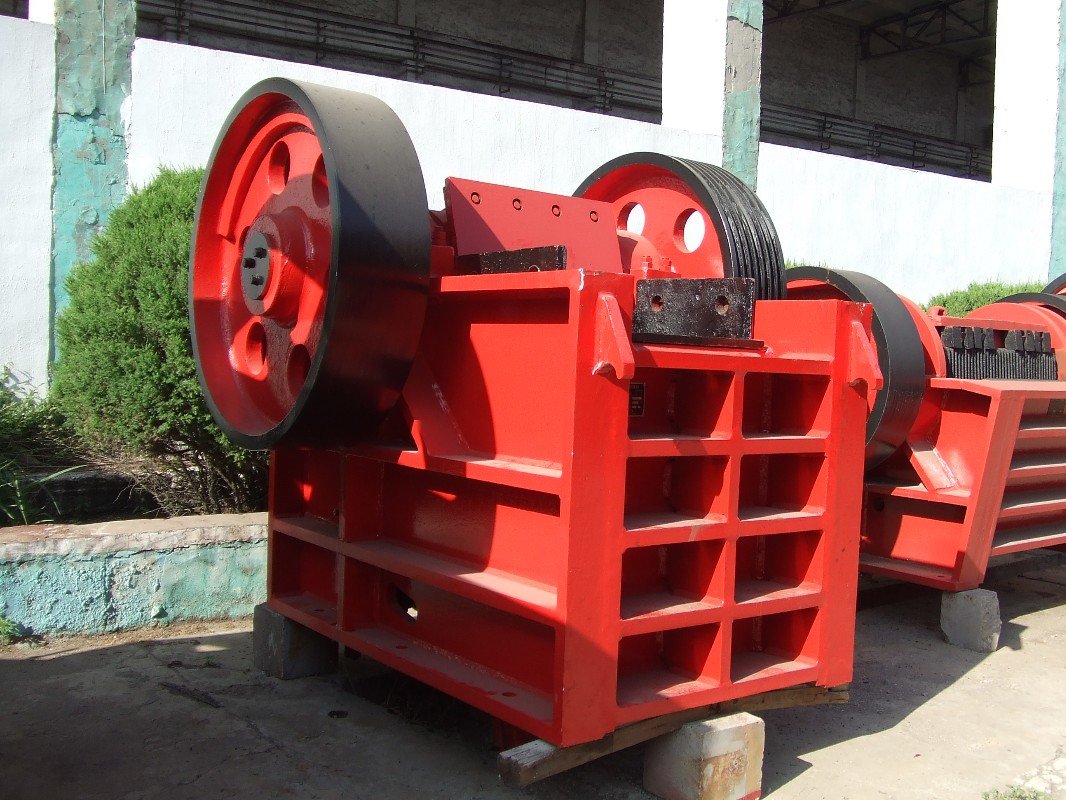

Small Mining 100-150 Tph Pe 600 X 900 Jaw Crusher Machine Images
|
